Ornella - iPhone App -
Record, track, draw, compare, import, export daily data

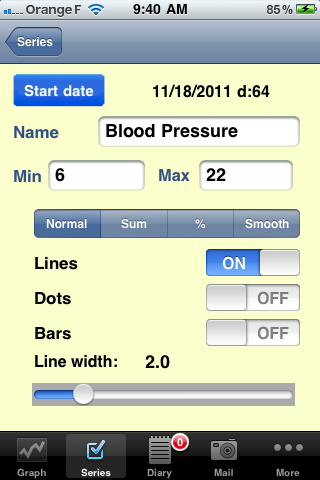

Series

• Check/uncheck series you want to see in the graph or in the diary.
• to add new series.
• to modify series : name, min/max values, type, display parameters. These parameters - including name - can be modified at any time.
  Different series types :
  • standard: default
  • percentage: % evolution from day 1
  • sum: aggregates daily values
  • smooth: nice curves (7-days moving average)
• Edit to delete series. Warning : deleting a serie deletes all its data.

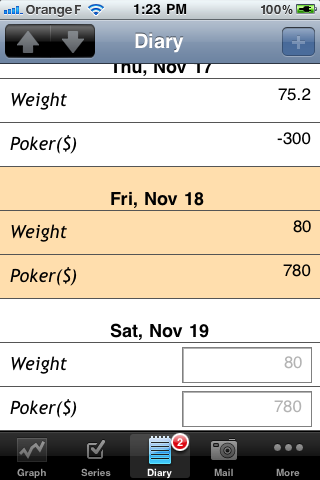

Diary

• to add new days.
• Tap the value (number) field to add/modify a value. The value at D-1 is displayed in light gray
• You can enter numbers or numerical expressions : 3 + 666/0.5
• Values < min or > max are highlited.
• Tips: ‘&’ recalls the value at D-1. ‘!’ inserts ‘+;’
• ‘?’ inserts a blank (undefined) value.

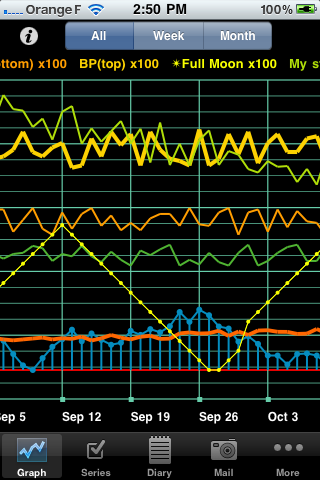

Graph

• Chose the display type (all, last week, last month). Only checked series are displayed. Tip: to compare two series, chose '%' in the series detail view.
• Scroll to right or left. Double tap to scroll back to left.
• Tap, or press and slide to display daily values balloons for the nearest curve.

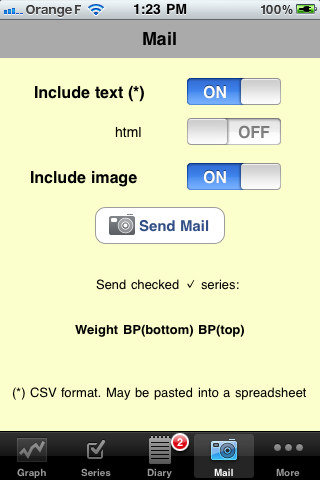

Mail

• Send text and/or image. Only checked series are sent.
• Chose 'html' for a nice display. Else the sent mail is in text (CSV = comma separated values) format, and can be pasted into a spreadsheet.

More

Remember you can use the Edit button in the More panel to arrange icons by dragging them onto the bottom bar.

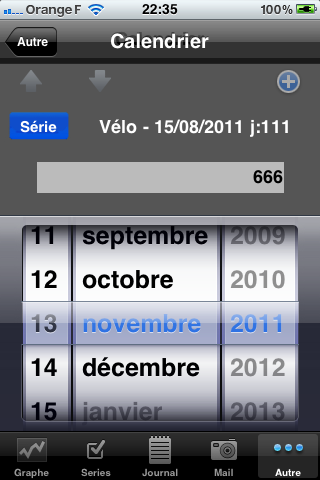

Calendar

This is an other view of the diary, one serie at a time.

• Serie button to switch between checked series.
• to add new days, one at a time.
• Tap the value (number) field to add/modify a value. The value at D-1 is displayed in light gray.
• up/down arrows to go to the serie start/end date

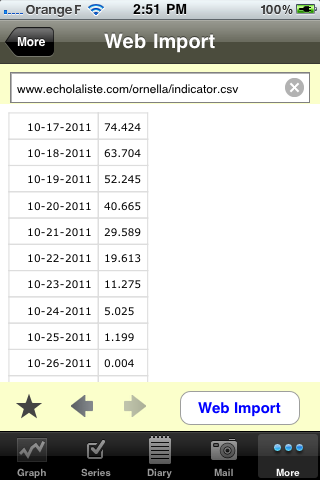

Web import

• Import web pages in CSV format : date ; value
  date ; value
  ...
• Enter the url address, then Go, then press the Web import button.
• An example : www.echolalie.org/ornella/indicator.csv
• The Web import view includes the navigation history and a set of pre-defined bookmarks : ★ button.

Tools

• Export : Save series onto you iPhone, in the ornella.csv file. All series are saved.
• Import : Restore deleted series, or import new series from the same file. Import does nothing if the serie is already present.
• The file can be shared between your iPhone and your computer, using iTunes. Documentation HERE.

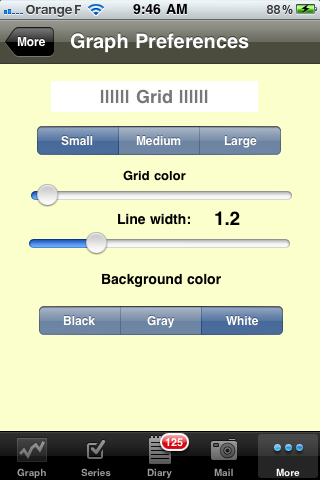

Graph preferences

• To set the grid drawing parameters (size,colors, ...)

Diary preferences

• To set the diary drawing parameters (font,colors, ...)

FAQ & Tips

• Do not mix too many curves in the same drawing ...
• Scaling. Ornella's curves are when possible automatically scaled, ie x10, x100, .. Add a '*' suffix to prevent automatic scaling. Eg: Weight*. Add a x10, x100, x1000 or /10, /100, /1000, (log) suffix to force a scale. Eg: Score/100 .
